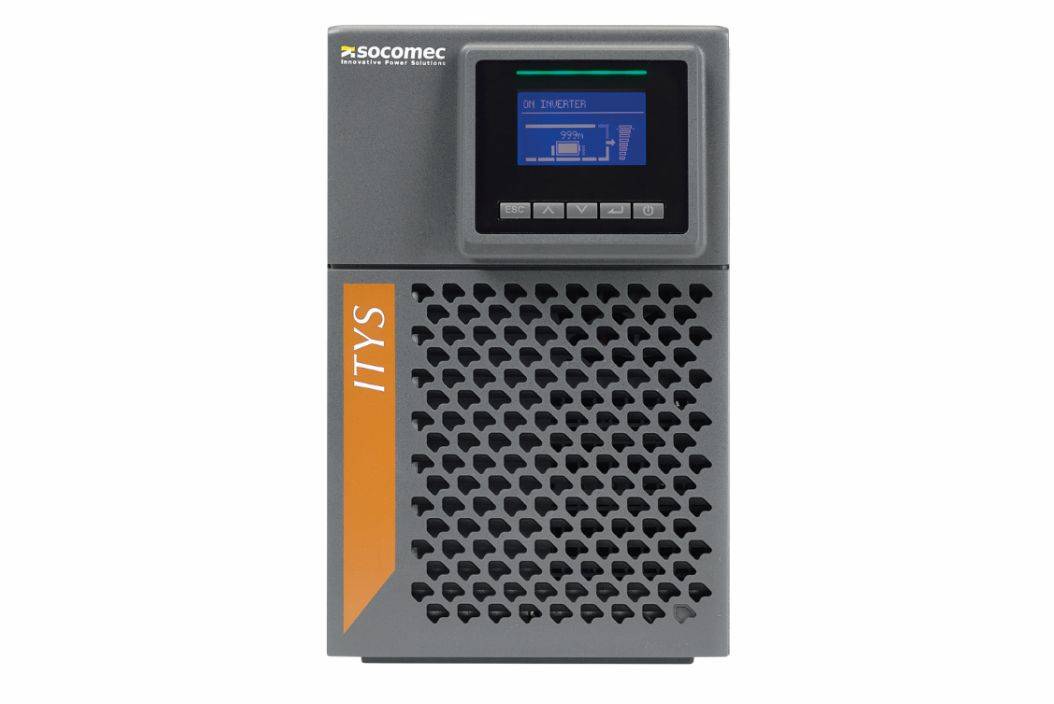

🔸Commerce Description : ITYS 2000VA VFI UPS 1/1 PF=1 WITH BATTERY INTEGRATED Effective date : 2021-02-05 Offer Life Cycle Code : 40 Country of origin : CN
🔸ETIM - Electrical characteristics Input voltage [V] : 160..300 Primary frequency [Hz] : 40..70 Number of phases primary : 1 Output voltage [V] : 200..240 Secondary frequency [Hz] : 50..60 Output effective power [W] : 2000 Output apparent power [VA] : 2000 Number of phases secondary : 1 SNMP : Yes Voltage type : AC Max. voltage distortion output (linear load) [%] : 1 Output power factor : 1

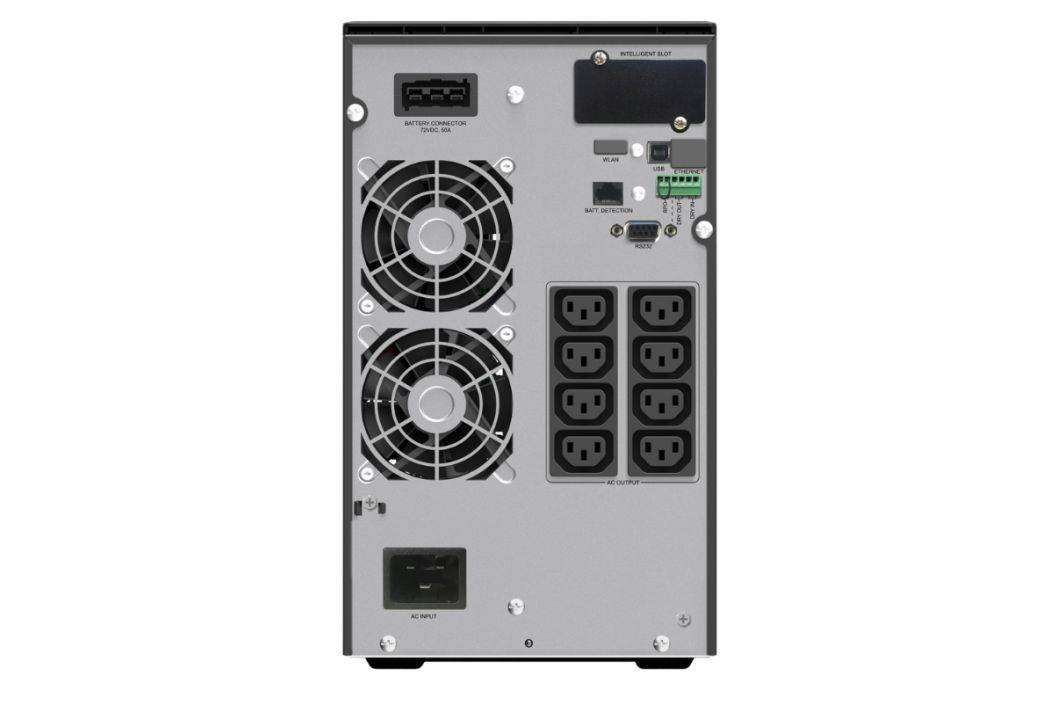

🔸ETIM - Mechanical characteristics Height [mm] : 322 Width [mm] : 192 Depth [mm] : 428 Weight [kg] : 26 Construction type : Freestanding model Input connection : C20 Number of output connections C13 : 8
🔸ETIM - Technical features USB interface : Yes Bridging time full load [min] : 11.1 Suitable for network-management : Yes USV- technology : Online Overall efficiency [%] : 93 Efficiency in eco-mode [%] : 98 Potential free switch contact : Yes Auto shut down function : Yes
🔸Technical Characteristics Height [mm] : 322 Width [mm] : 192 Depth [mm] : 428 Weight [kg] : 26 In/out : 1/1 Output voltage : 230 Rated frequency : 50/50 Sn [kVA] : 2 Pn [kW] : 2 Conf : C1 Input voltage : 230 Rate (min) : 2 Rate (max) : 2 Life Time : 03-05 Typical Backup Time [min] : 15 Configuration : UPS Single Unit(s) with Bypass
