Vention HDMI Extender over LAN Cable RJ45 HDMI KVM Network Full HD AKG

Vention HDMI Extender over LAN Cable RJ45 HDMI KVM Network Full HD AKG

Adaptor & Hub

Available At:

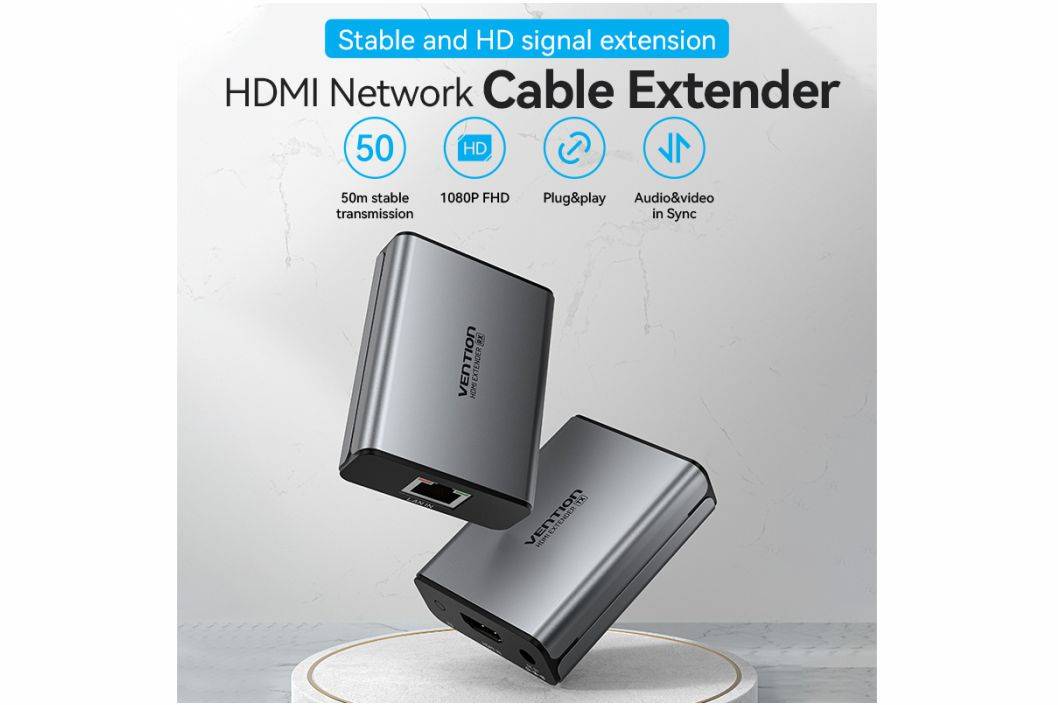

⭐️ Vention HDMI Extender over LAN Cable HDMI KVM Network Extender ⭐️

⚠️ ATTENTION ⚠️
🔸 Maksimal panjang kabel LAN : up to 50M
🔸 Maksimum panjang kabel HDMI input & output : Input (20M) & Output (20M)

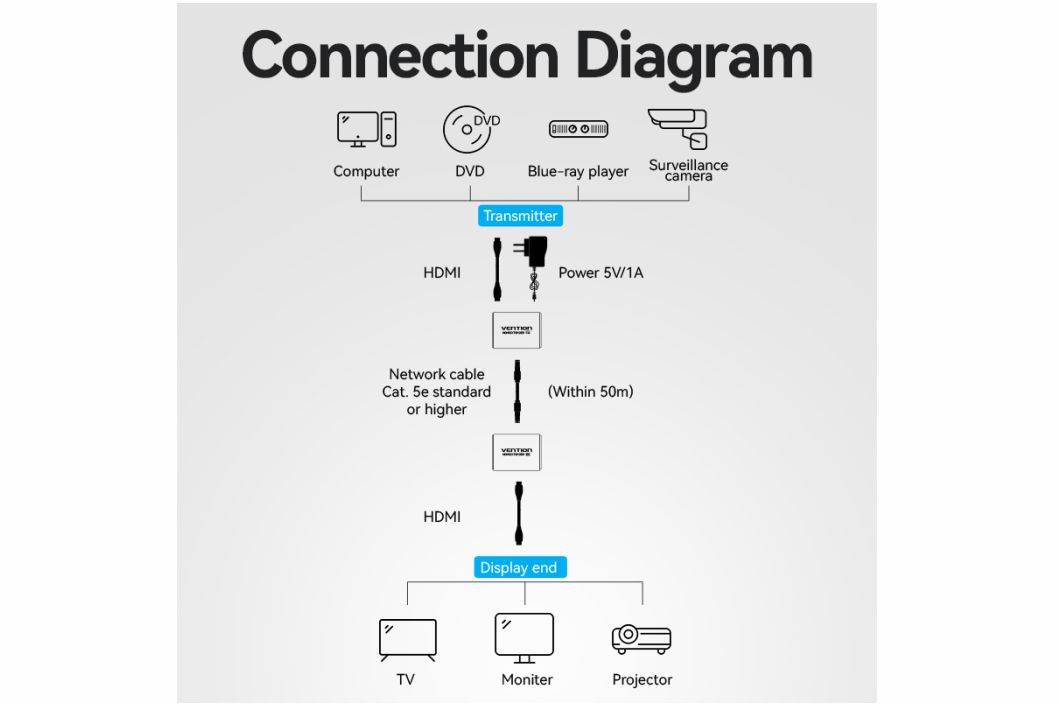

🔸 Pastikan cara pemasangannya sesuai, transmitting end(TX) to Receiver end(RX). Bisa diperhatikan digambar : Connection Diagram

🔸 Direkomendasikan menggunakan kabel LAN minimal Cat.6
🔸 Produk ini membutuhkan power untuk berfungsi, bisa menggunakan kabel DC Power yang sudah disediakan.
🔸 Untuk panjang kabel HDMI tergantung dengan AWG kabel :
- 0.75M-3M : 30AWG
- 5M-10M :28AWG
- 12M-15M : 26AWG
- 20M : 24AWG



Summary

Features :
🔹 Resolusi up to 1080P@60Hz, 3D Support
🔹 Audio and Video in Sync
🔹 Support Dolby AC3, DTS, DSD
🔹 Support EDID for Self-adaptive
🔹 Extension Support up to 50 Meter
🔹 Win 7,8,10, Mac OS, Linux Support
🔹 Plug and Play

Specifications :
🔹 Color : Gray
🔹 Connector Interface :
- Transmitting end (TX) : DC 5V Power Port/HDMI(Input)/EQ Button to RJ45(Output)
- Receiver end (RX) : HDMI(Output) to RJ45(Input)
🔹 Connector Material : Nickel-plated
🔹 Shell : Aluminum Alloy+ABS
🔹 Rate Power Input : 5V==1A

Included :
🔹 Power Adapter(EU) x 1

Garansi 2 tahun diluar human error
